SE Bikes SE Racing Vans PK Ripper 20"

SE Bikes SE Racing Vans PK Ripper 20"
Please select options Unavailable

Details

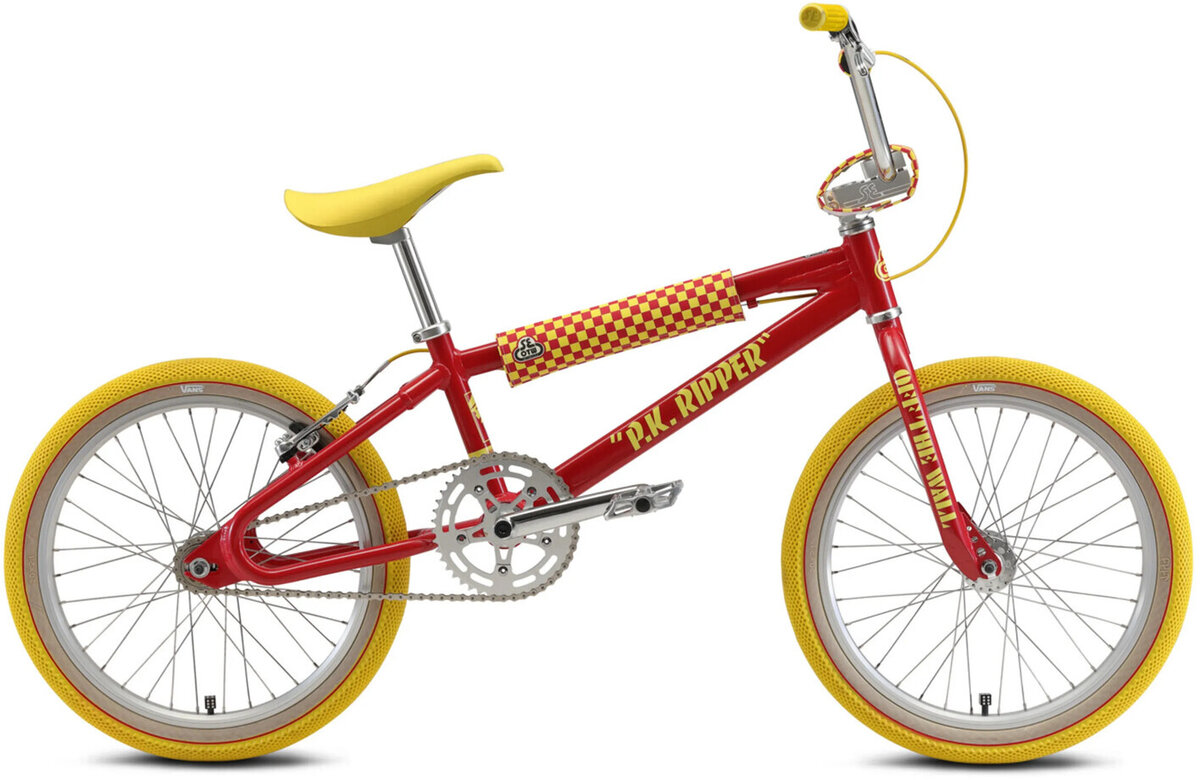

With over 40 years of production, the PK Ripper is the most famous and longest-running bike in the history of BMX. It honors a legacy both innovative and timeless. This year we collaborated with Vans, the original action sports footwear and apparel company, to produce the first-ever limited-edition Vans PK Ripper, adorned with details like Vans x Cult tires and grips, a Vans checkerboard padset, and even Vans ‘66 valve caps. Vans was founded in 1966 in Anaheim, CA, and the brand is embedded in BMX culture. Many top riders throughout the history of the sport including “PK” himself, Perry Kramer, have worn Vans shoes and ridden in many Vans-sponsored BMX races and events. To complete this awesome PK Ripper collaboration, Vans produced Vans x SE Bikes PK Ripper shoes, complete with reflective checkerboard detailing and PK Ripper sidewall art. Get the bike and get rippin’! Limit one per customer.

- Vans edition 6061 aluminum PK Ripper frame w/ floval tubing, looptail rear end, seatstays wrap, Diamond Dropouts
- Limited Edition & Individually Numbered on the Inside of the Rear Dropout
- Full Cr-Mo “Off the Wall” Landing Gear forks
- Cr-Mo Power Wing bars
- Vans x Cult Grips with rubber SE end plugs
- Vans x Cult 20” x 2.1” Tires
- Double-wall rims with sealed bearing SE Mohawk hubs
- Vans Checkerboard Padset, '66 Dice Valve Caps, Alloy Rear Wheel Washers
- 24 pounds

Geometry Chart:
Size21-inch
TOP TUBE, ACTUAL (IN)   21
SEAT TUBE, CENTER TO TOP (IN)     10.2
SEAT TUBE ANGLE 71°
HEAD TUBE ANGLE 74°
CHAINSTAY LENGTH (IN) 14.75
WHEELBASE (IN) 37.7
BOTTOM BRACKET HEIGHT (IN) 11.7
STANDOVER (IN) 22.5
SUGGESTED RIDER SIZE 5'3"+ (160cm+)
STEM (mm) 55
HANDLEBAR WIDTH (IN) 28.5
CRANK (mm) 180
WHEEL SIZE (IN) 20
SEAT POST DIAMETER (mm) 27.2

Geo Chart

Specs

Frame Vans Edition, 6061 Aluminum Floval Tubing, Looptail Rear End, Seatstays Wrap, Retro Diamond Shape Dropouts, 68mm American Bottom Bracket, Limited Edition & Individually Numbered on the Inside of the Rear Dropout
Fork "Off the Wall" Landing Gear, Full Cr-Mo
Headset Aluminum Cups, 1-1/8" Threadless, SE Wing Logos on Bottom Cup
Rims/Wheels 36H High-Flange Alloy, w/ Double-wall Rims
Hubs Sealed Bearing SE Mohawk Hubs
Spokes Stainless Spokes
Tires Vans x Cult Tires, All Over Tread Design, Vans Waffle Sole Pattern, 20" x 2.1" Front & Rear
Crankset SE TSC Cranks, 180mm, Sealed Bearing American Bottom Bracket, 141mm Spindle Length, 19mm Spindle Diameter, Alloy Spider
Chainwheel 44T Alloy Chainring
Bottom Bracket 180mm, Sealed Bearing American Bottom Bracket
Chain KMC Z6
Freewheel 16T Freewheel
Handlebars Cr-Mo Power Wing, 29" x 8.25", 10° Backsweep, 1° Upsweep
Tape/Grips Vans x Cult Grips, Waffle Sole Pattern, Made in USA
Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, Hidden Top Cap, 55mm Reach
Brake Levers Tektro 316A, 2-Finger Alloy
Brakes Tektro C-310 V-Brake, Slick Cable
Pedals X-Pedo Low-profile Platform w/ Removable Pins
Saddle SE Racing Old School
Seat Post Micro-Adjust Alloy, 27.2mm
Seat Binder SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter
Accessories & Extras Vans Checkerboard Padset, '66 Dice Valve Caps, Alloy Rear Wheel Washers
Weight 24 lbs / 10.86 kgs

* Subject to change without notice.
